Latest Update Photo Page

CLICK ON THUMB NAIL : These are some of the latest photo's that do not need a page of there own.

Before and after spray filler photo.

Fuel Tap, Gascolator & pump,Dash Pannel,Carb Linkage,Trim

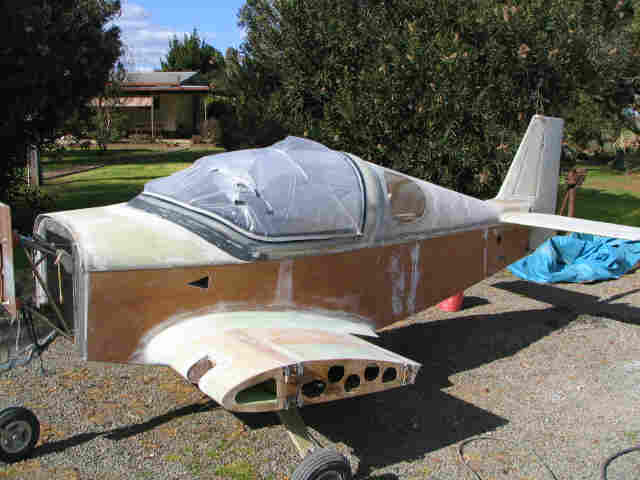

Before Spray filler was applied

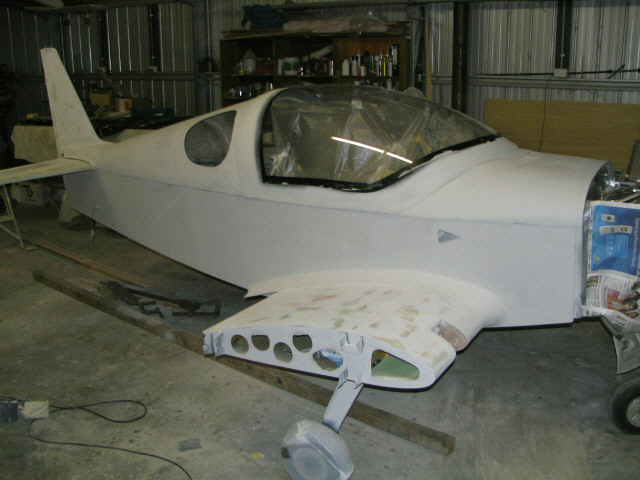

After Spray Filler Aug 22

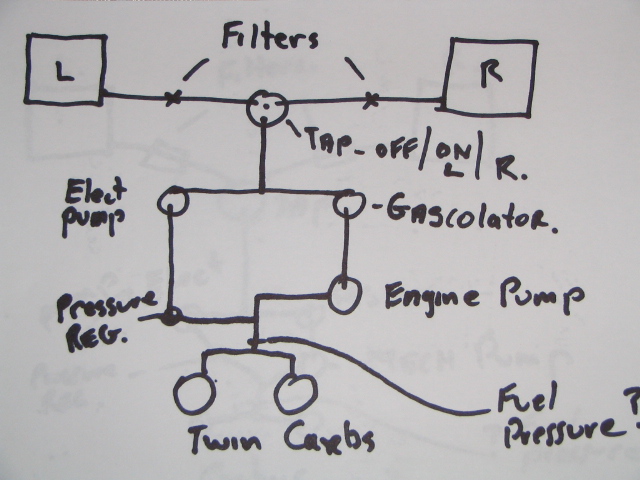

Fuel system drawing

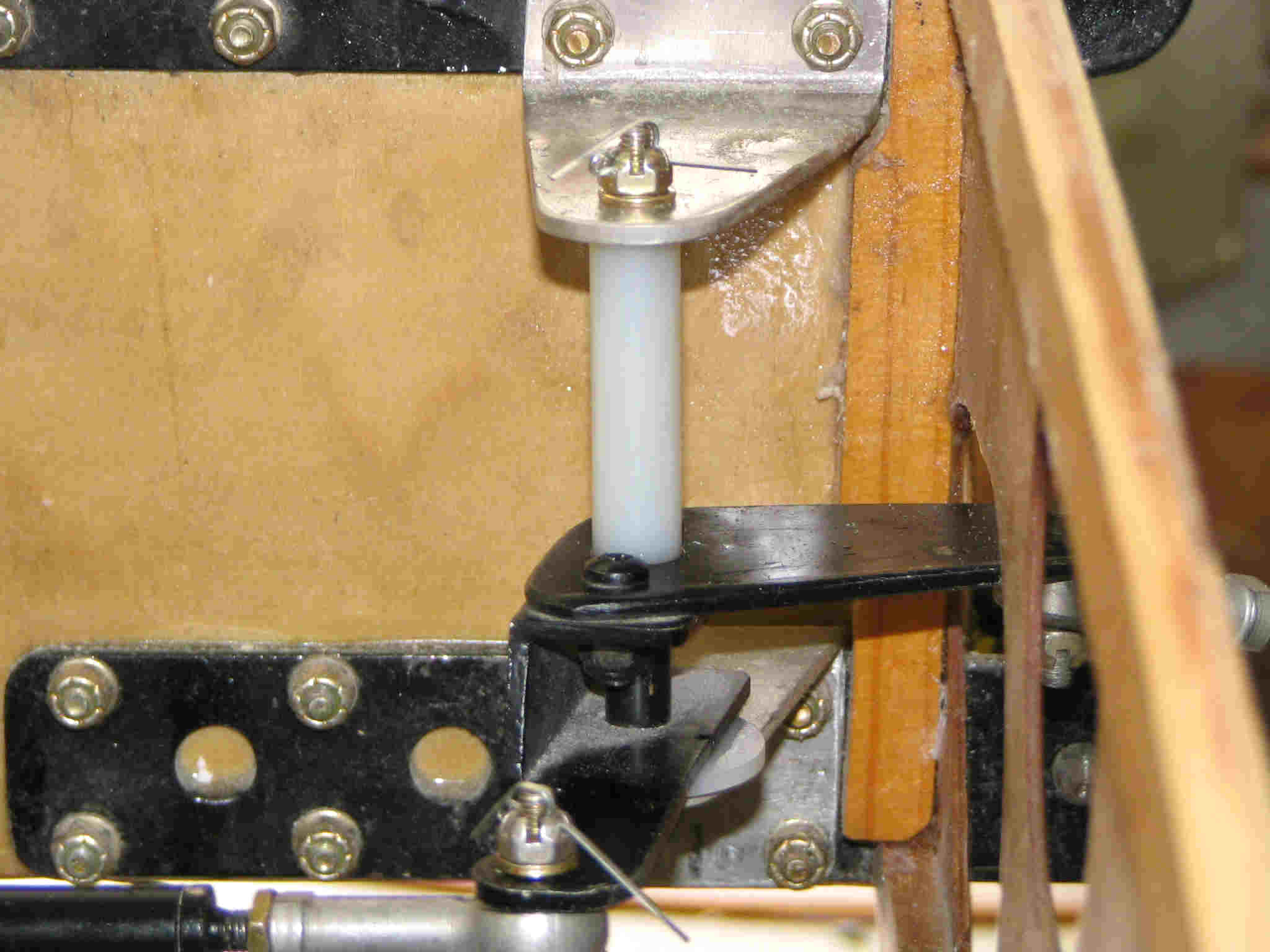

R Modified Aileron

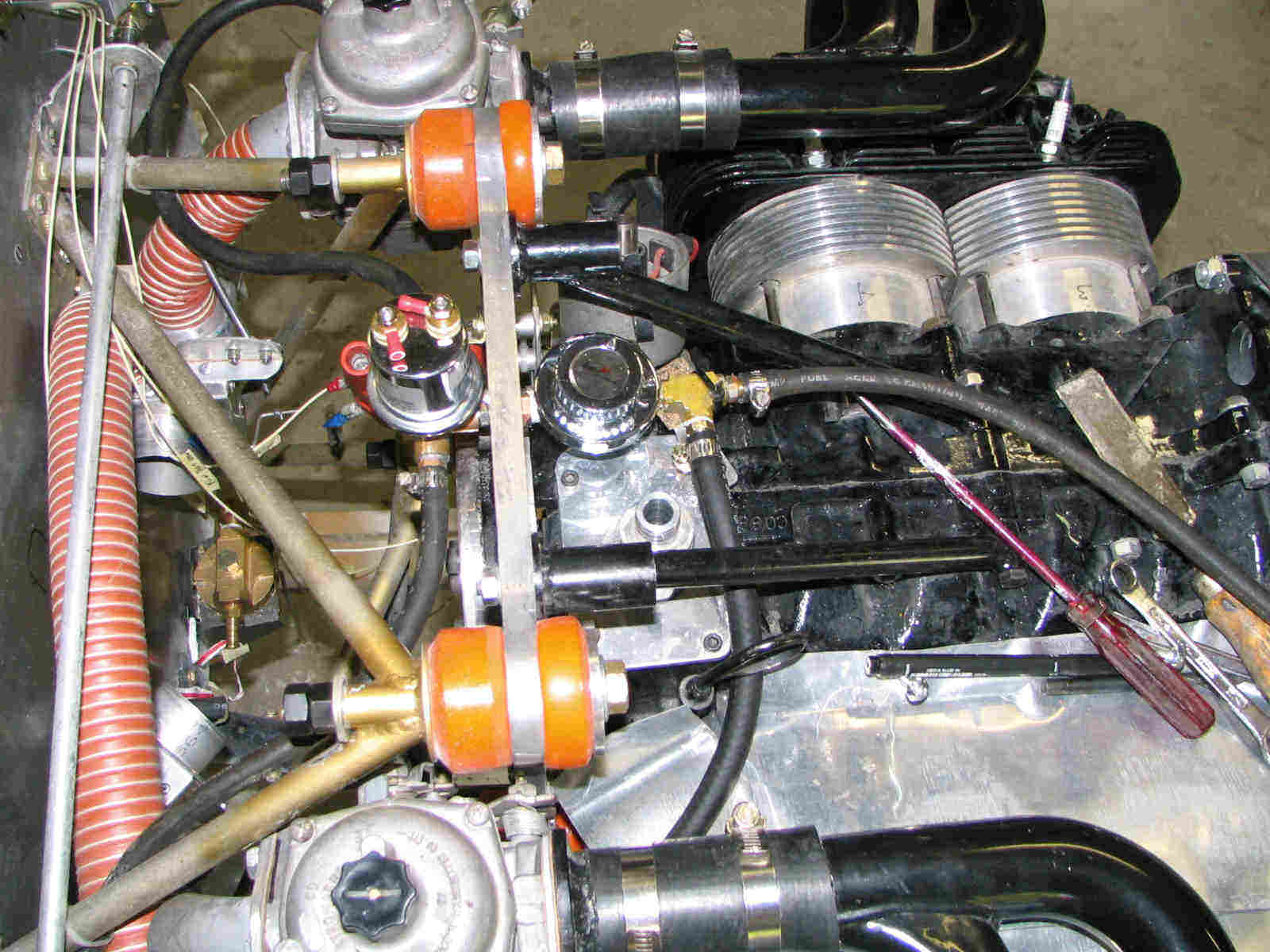

Engine and fuel pressure and regulator gauge, in the centre

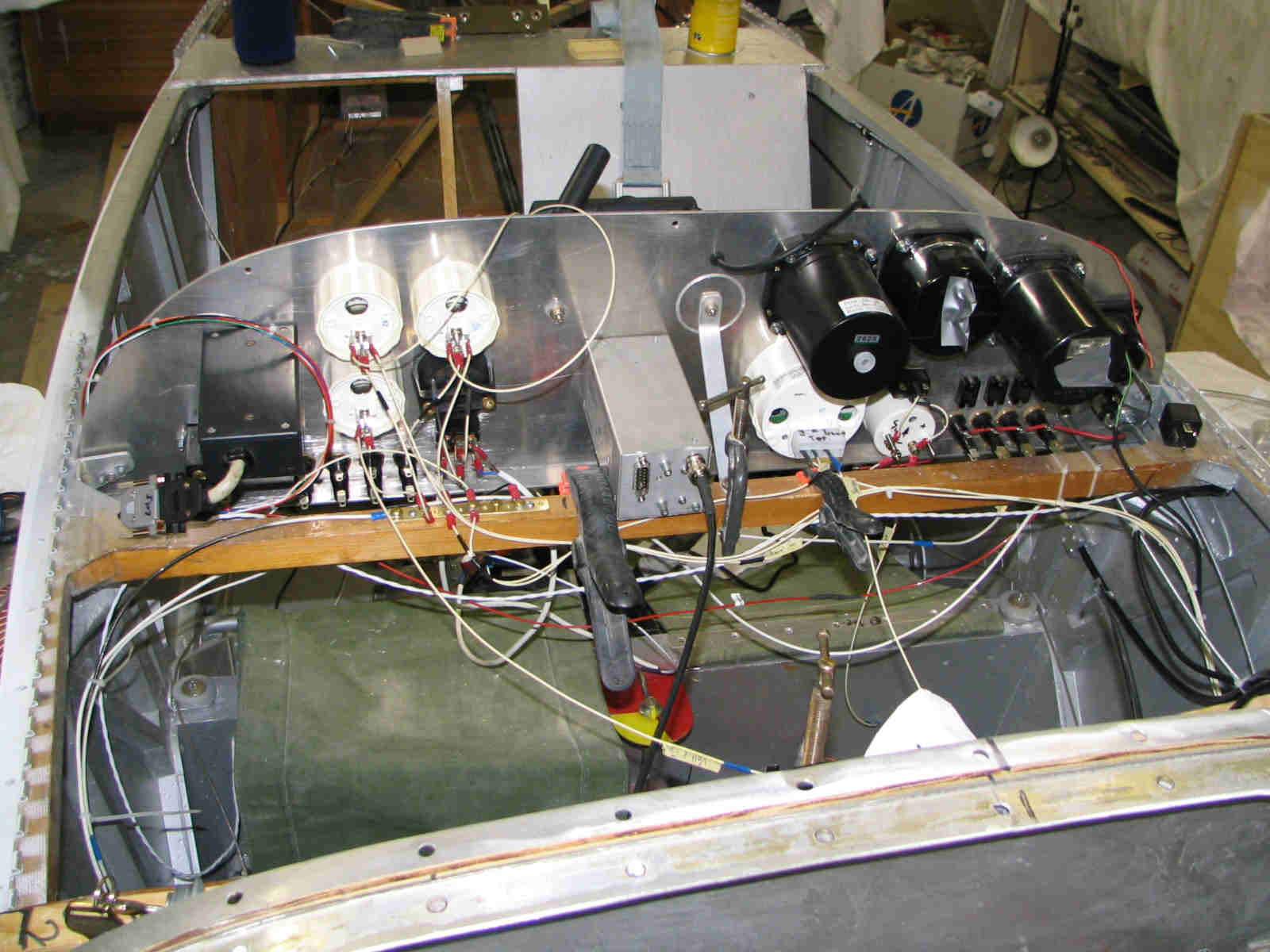

Latest Rear view Dash and wiring

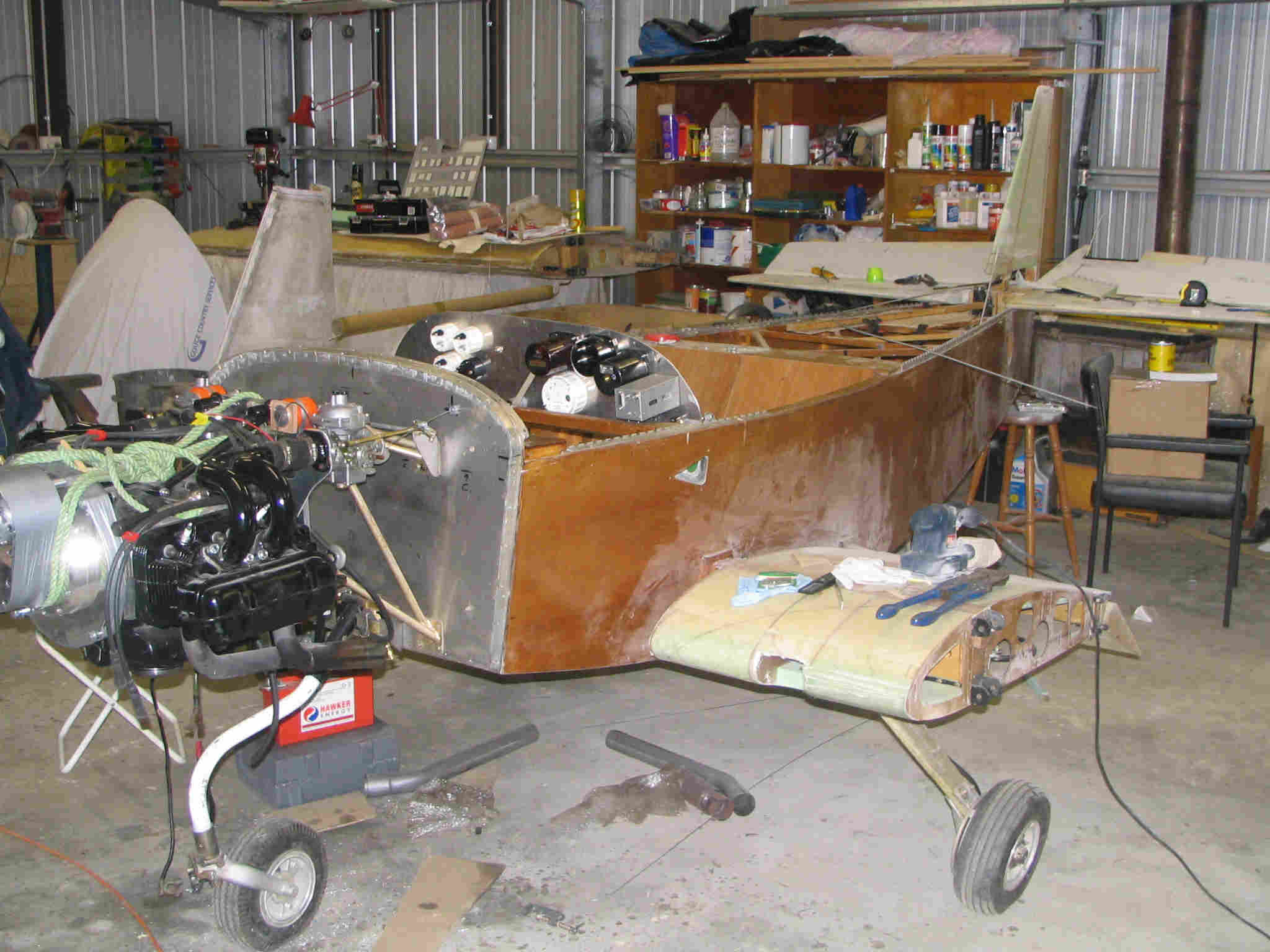

With my removial Front Deck and Canopy, as well as Removial Turtle deck, I can pull my KR down to this for a service and check over in less then 10 min.

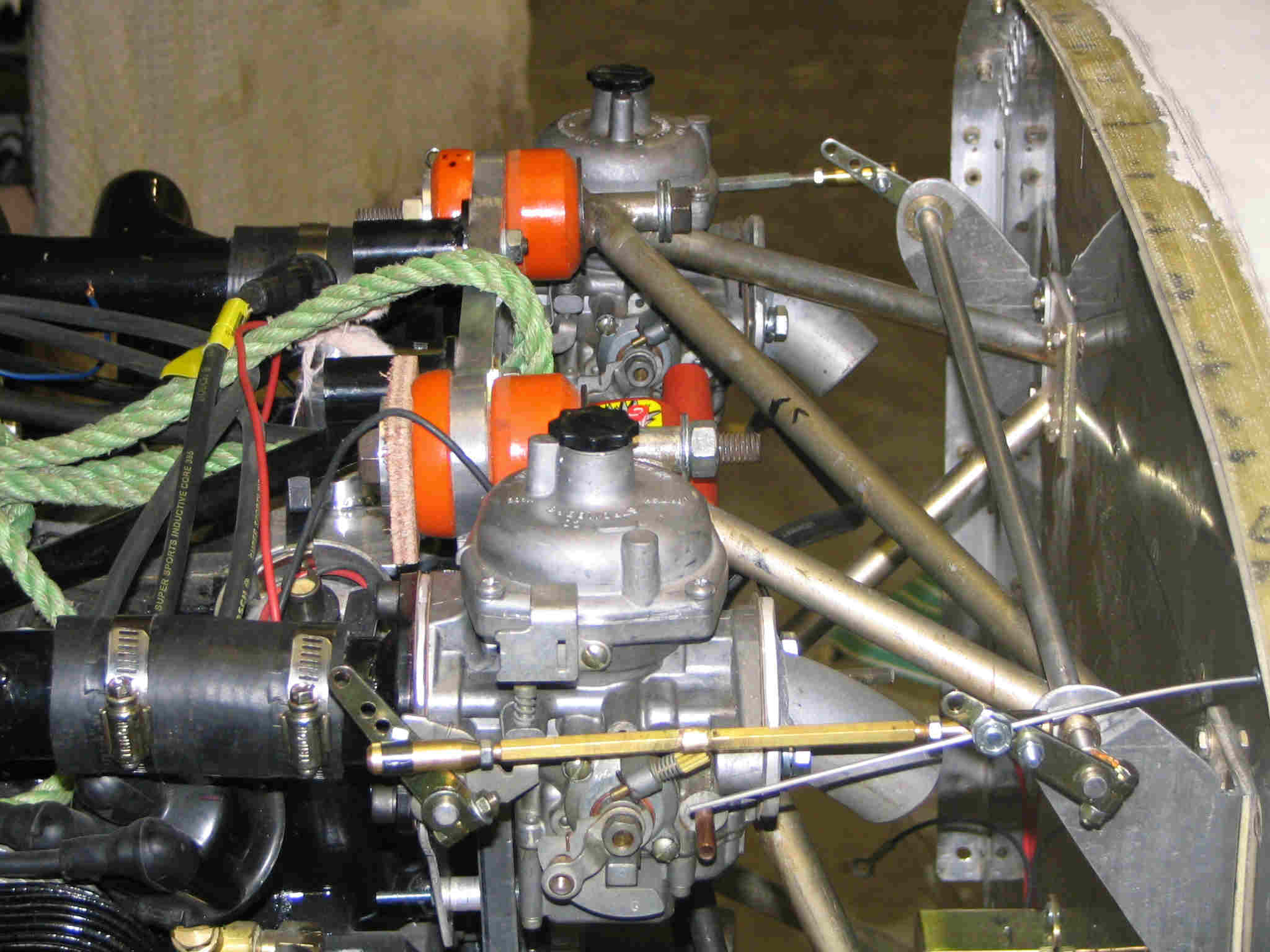

Twin Carb Linkage

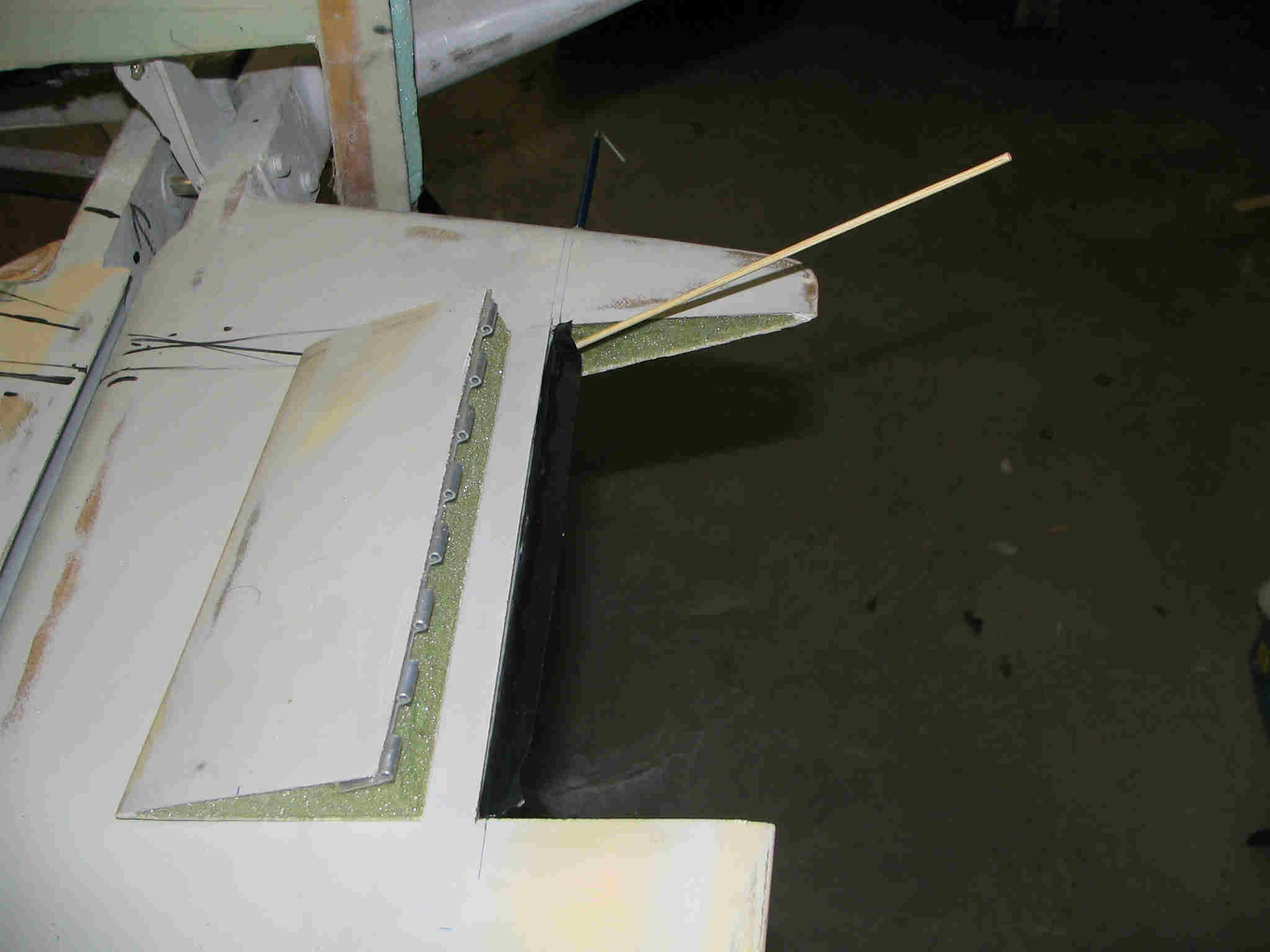

New Trim. I fitted Piano hing under the elevator skin. I will strengthen this after the holding epoxy dries.

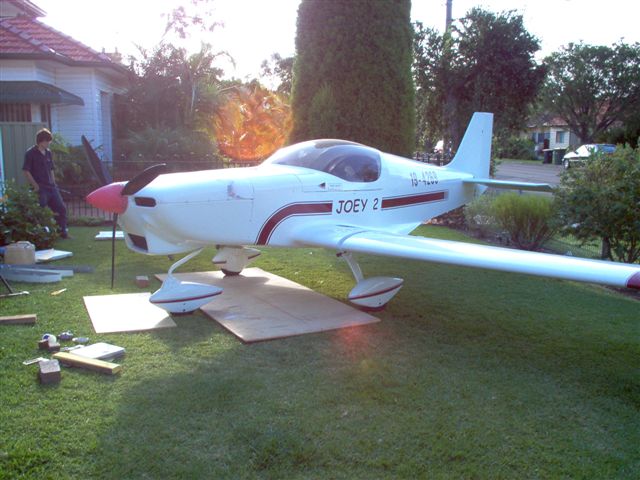

Garry Morgans's Joey 2 = ( Copy of KR2ssss 44 inch fuse)

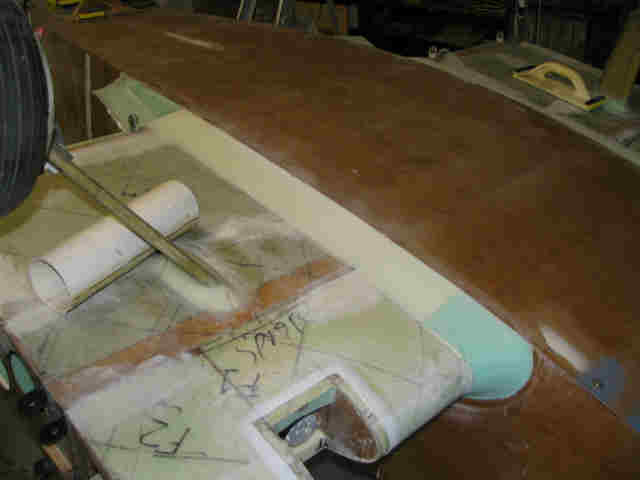

Sanding inner wing fillets

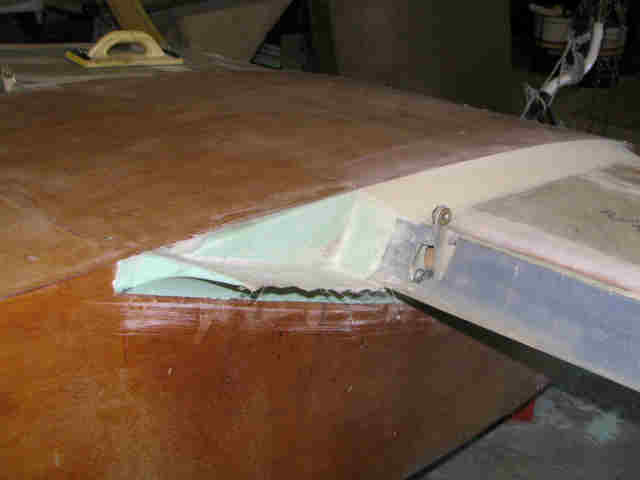

closing gaps around flaps to fuse area

Don Lavricks Round main Gear legs

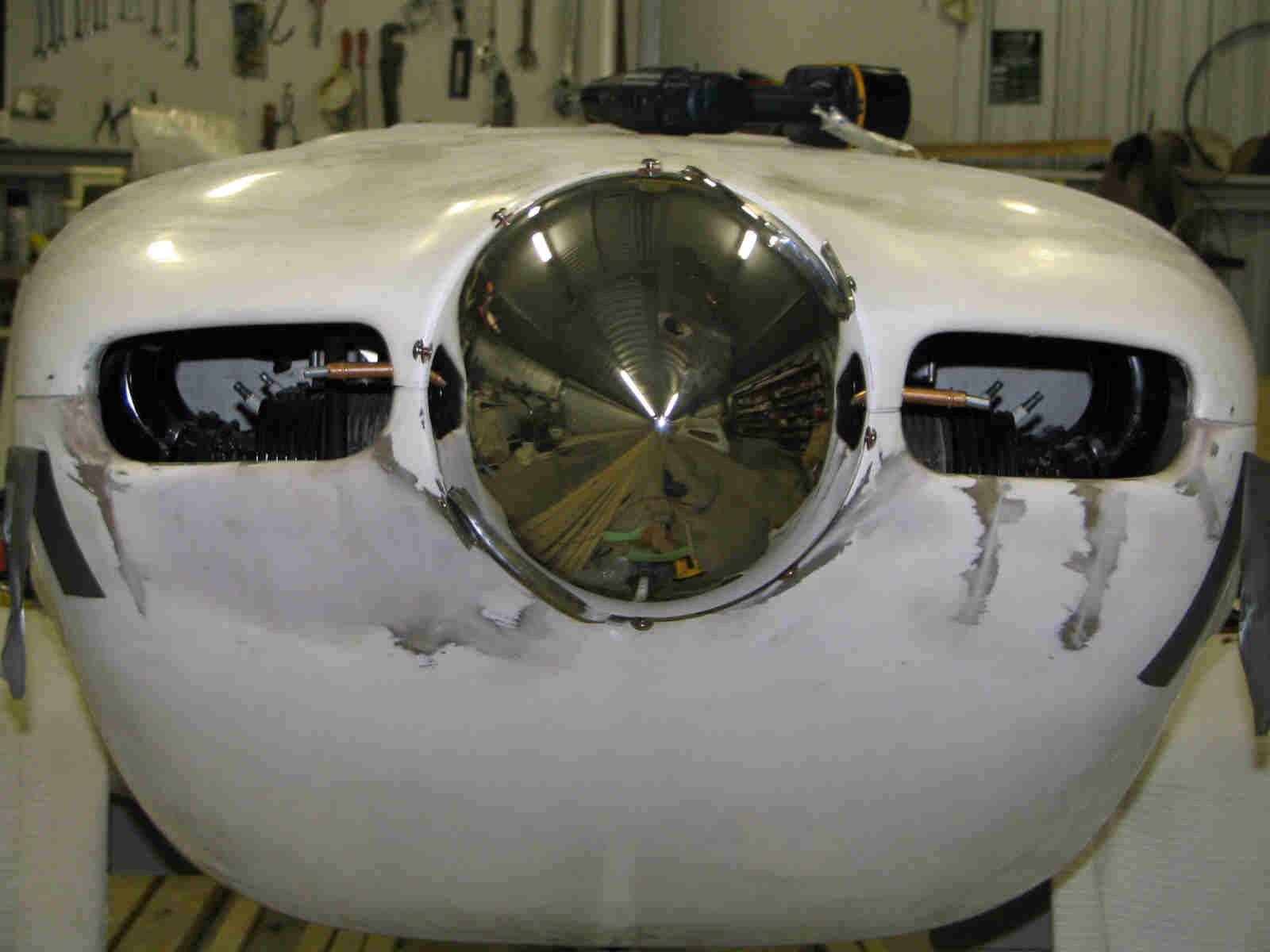

New spinner from Cummins Spinners Bendigo

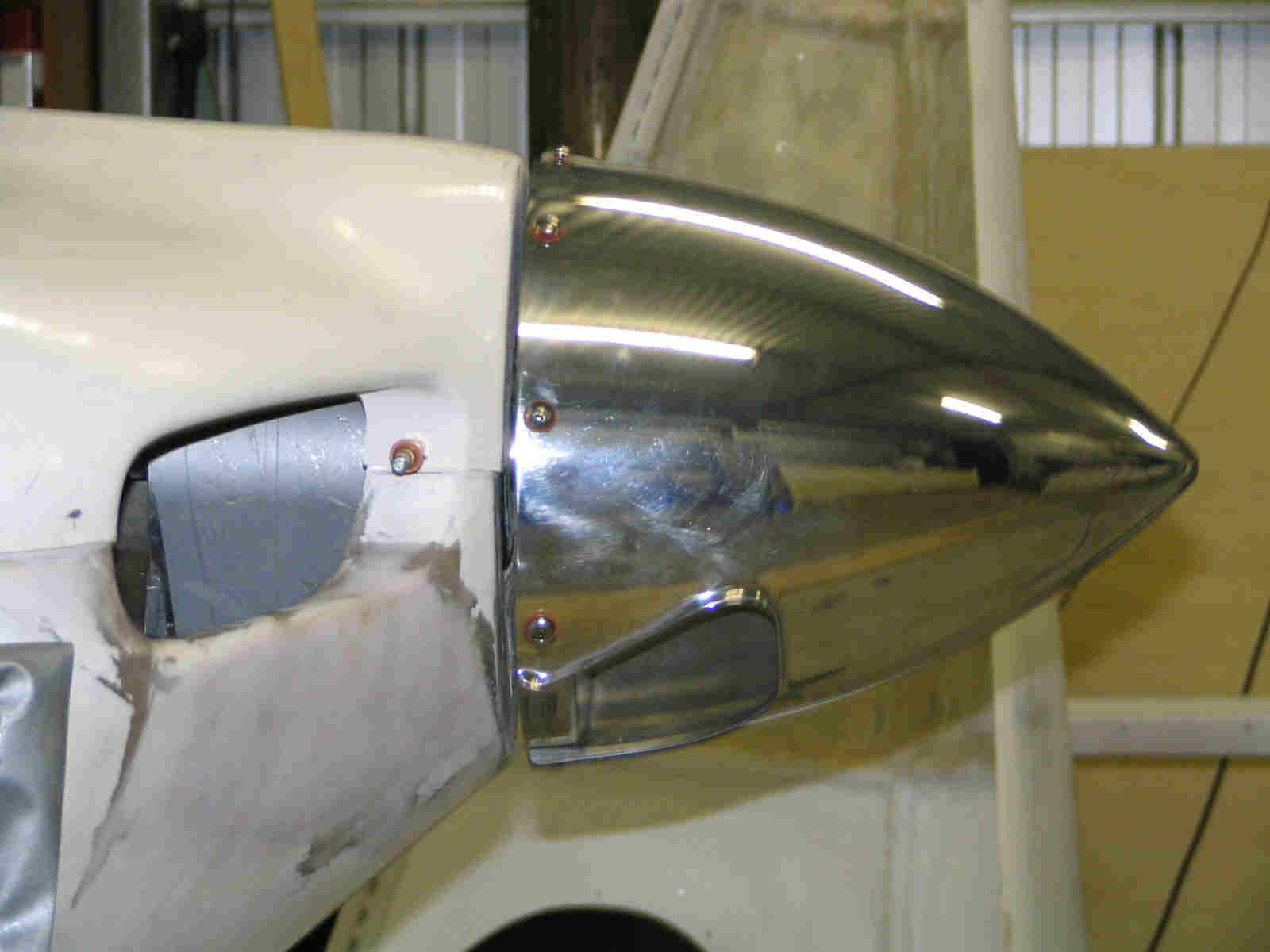

New spinner side view

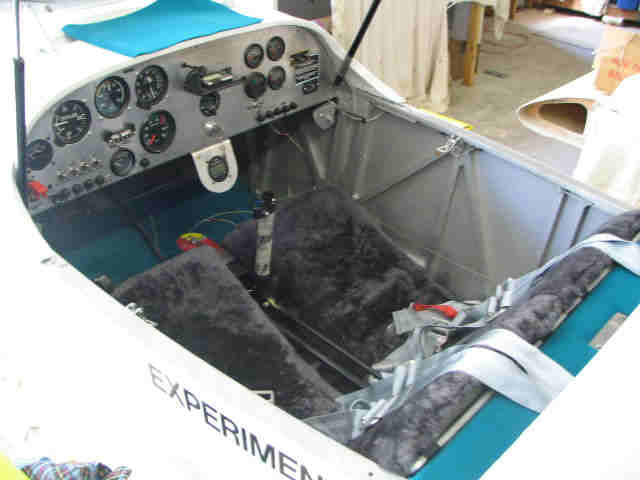

New complete Panel Dec

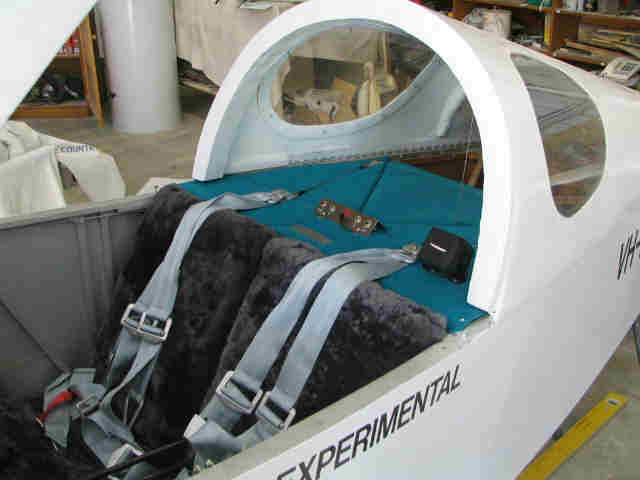

Interior and light storage, rear windows

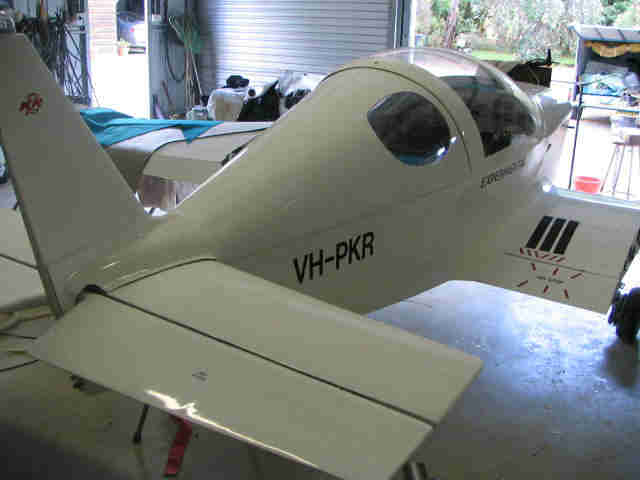

Decals, No step, Experimental signage.

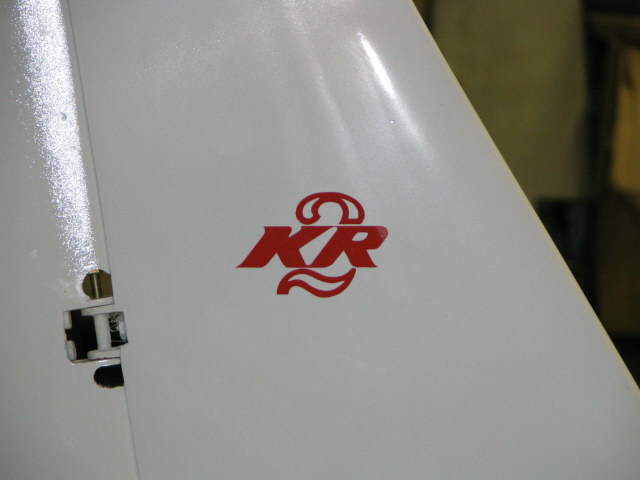

KR2 Sticker from Aviation Signs Australia. Allen Buzza. aviationsigns@optusnet.com.au

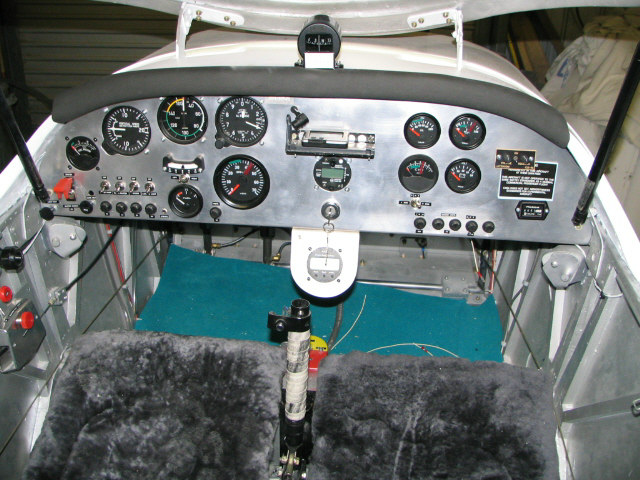

Finished Pannel, less GPS.

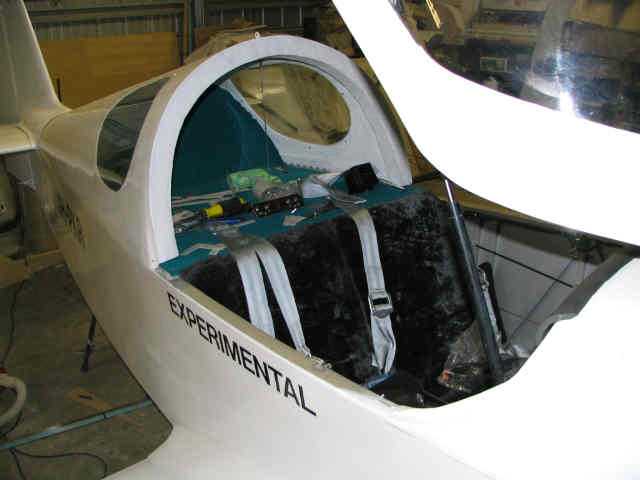

Rear Deck and windows Now finished.

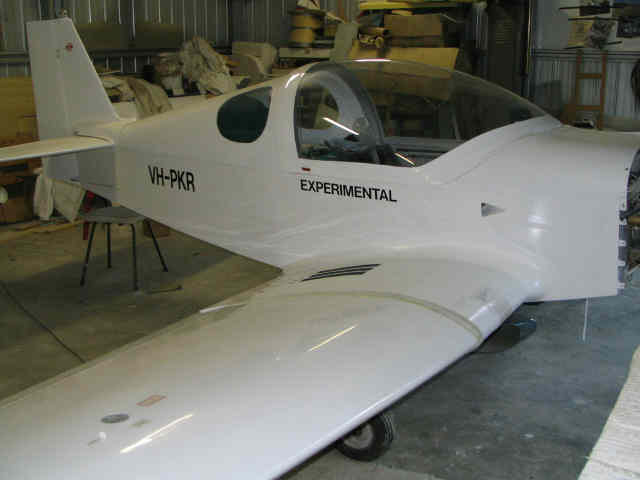

Finished Fuse less engine. Signage from Aviation signs: .aviationsigns@optusnet.com.au

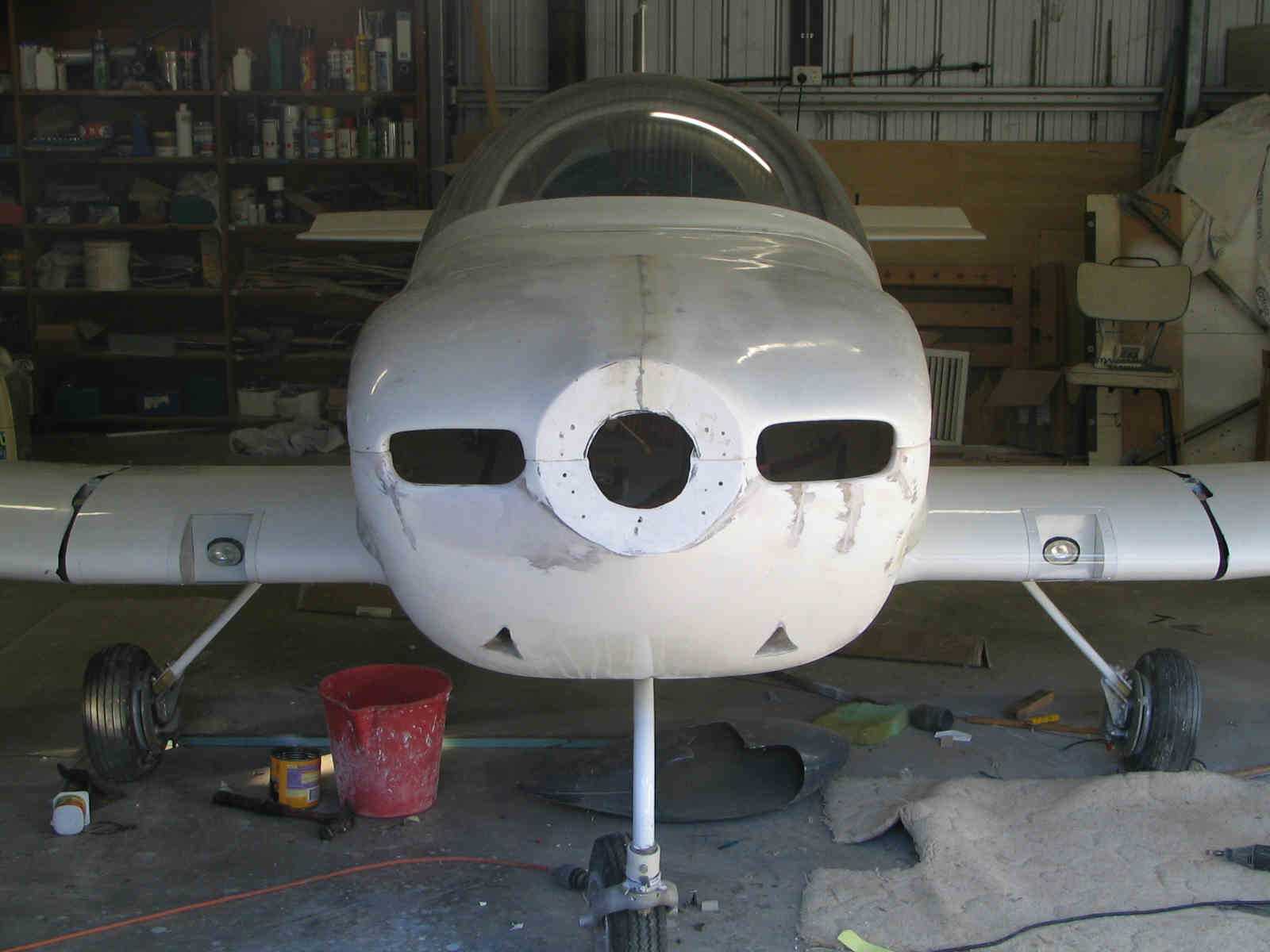

Front , less engine, needs painting soon

Can not wait to get the engine back in and head to airport, to start testing

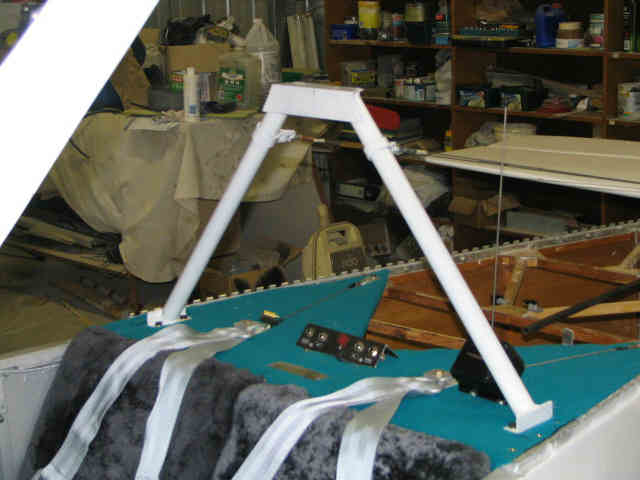

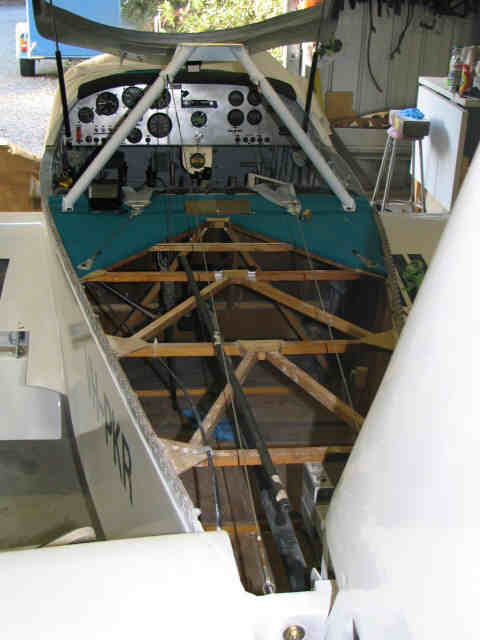

Above: 4130 Bar similar to RV4

Two cables from Bar to H/S bulk head

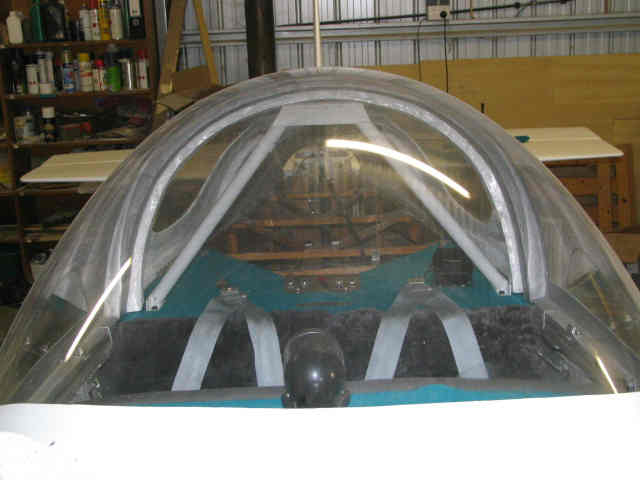

Front through the canopy
