Engine and Oil Cooling Page

Engine Purchased from VW Engines Aust

Type 4 VW case. with Aluminum Barrels, Chevy pistons, Geared Drive , Twin Stromberg Carbs. 100hp , 200 ft lbs torque

 http://www.vw-engines.com

<ISML TYPE="counter" OPTION=graphic_odometer>

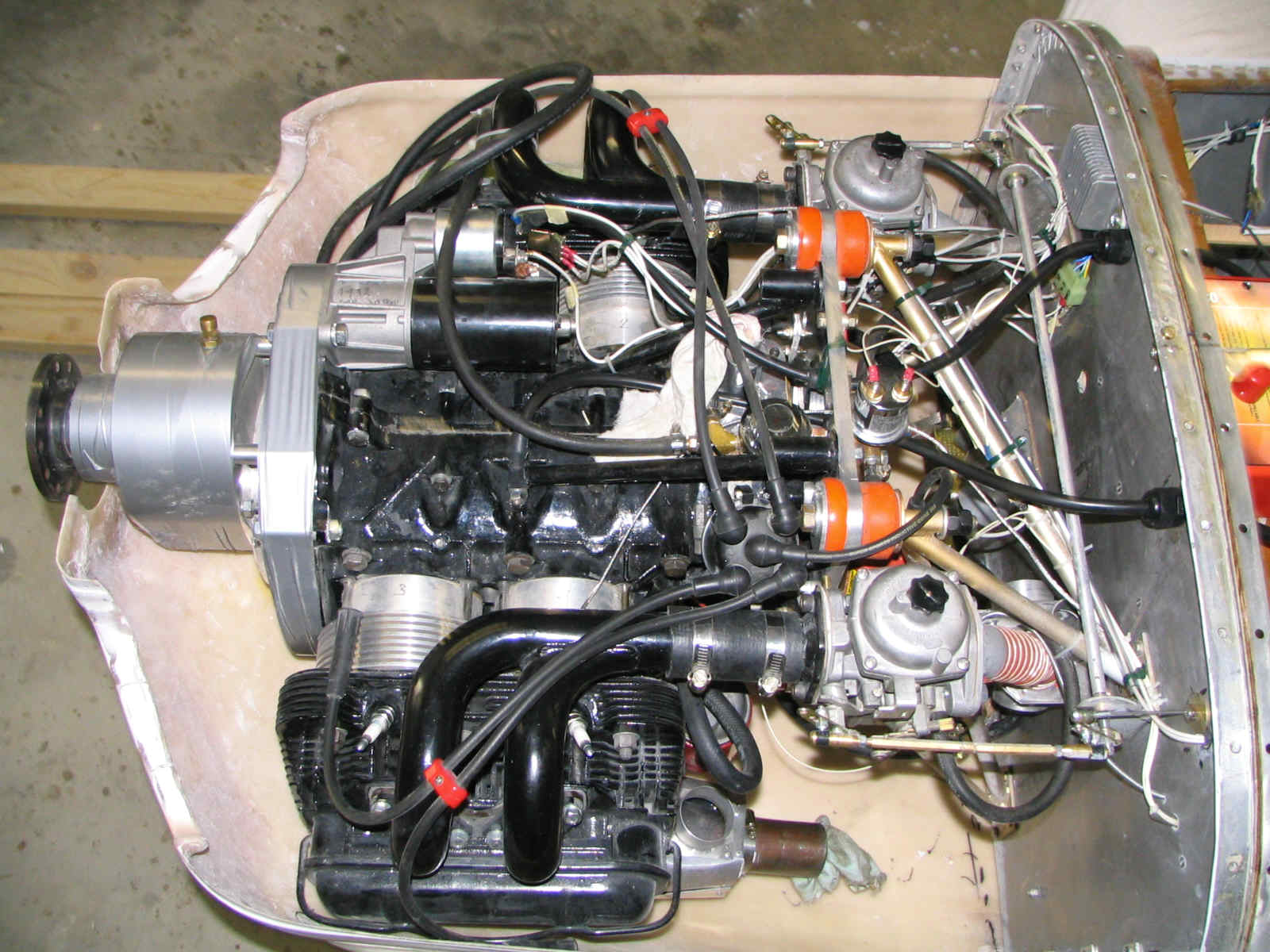

LEFT: Engine Installed, and all item connected. Updated 23 Dec 06

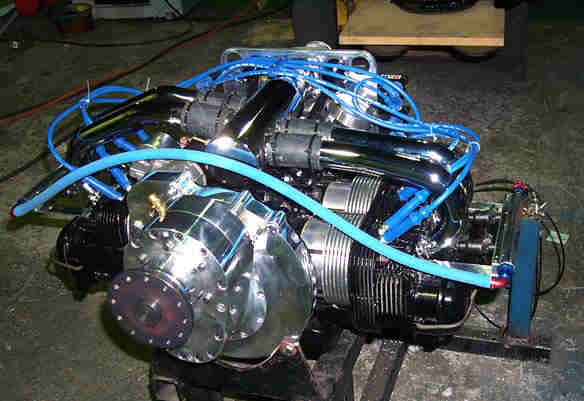

RIGHT: EFI Engine version, Contact VW Engines for info
http://www.vw-engines.com

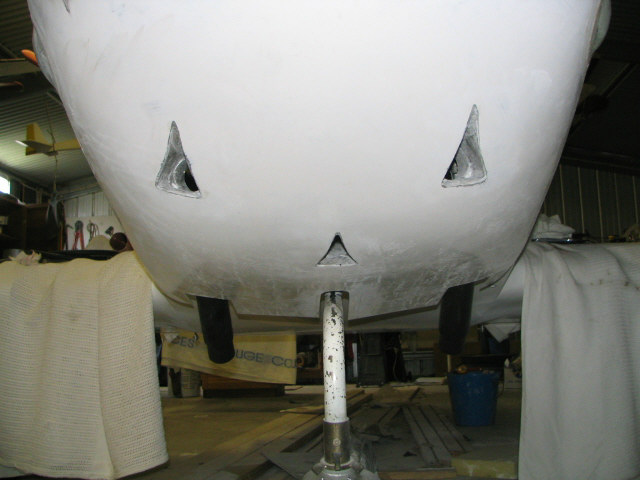

Above: Engine Cowl with three air inlets to feed oil cooler and cabin heat.I have the ability to remove the Cabin heat inlet and put it on the oil cooler in hot weather conditions

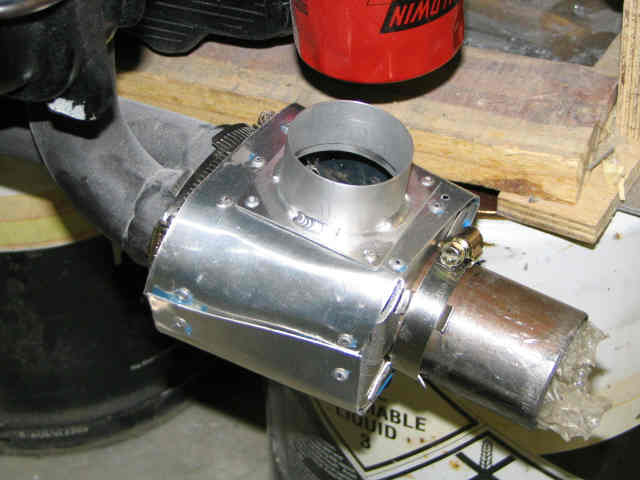

Above: Carb heat box, Modified Aircraft Spruce kits

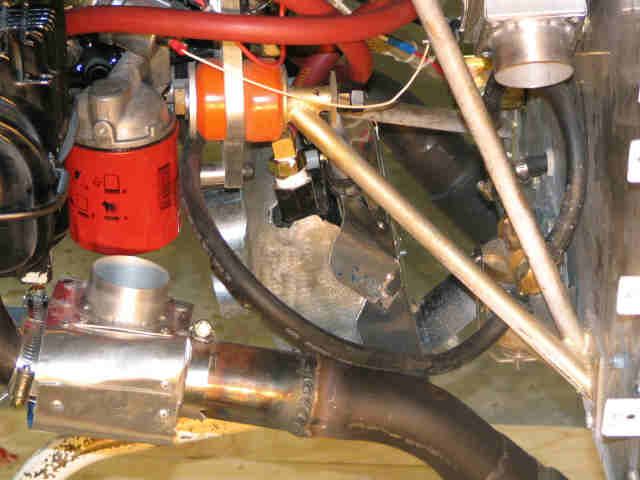

ABOVE: Oil Cooler mounted under the rear of Engine, with Scat ducts

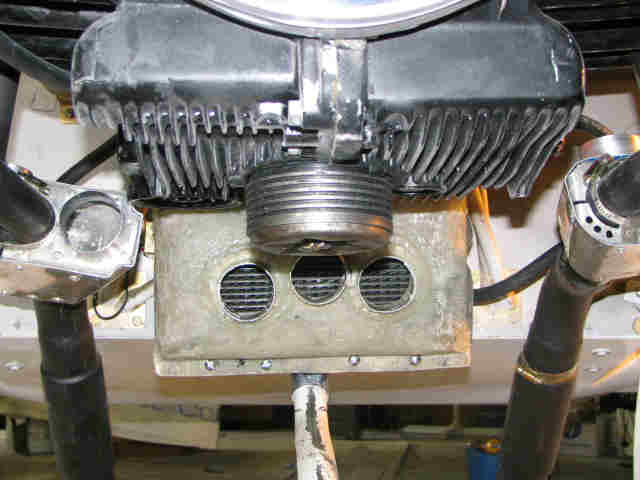

ABOVE: Oil Cooler photo from under the engine. showing 3 inlets.
